Hybrid System®

Bursting plug with the ability of defined media discharge

All pressure relief devices in our modular system are self-contained bursting units designed for installation in containers, valve blocks and piping systems. A threaded opening with a sealing ring is sufficient to achieve the desired safety. We offer adequate solutions for both gaseous and liquid media. Various types and designs are available to meet the most diverse requirements in terms of bursting pressure, thread and outflow volume.

Hybrid System

All Hybrid System® types consist of a housing and a bursting foil which is metallically sealed by means of a pressure screw. The bursting plugs are designed according to the customer's requirements with regard to bursting pressure and temperature. Limits are set almost by physical conditions only.

The Hybrid System® housings of are made of high-quality stainless steel 1.4404 (AISI 316L). Nickel, stainless steels and nickel-based materials like Inconel*) can be used for the bursting foils. Due to the design, a helium tightness of up to 1 x 10-9 mbar l/s can be achieved.

Hybrid System(R) STANDARD

Hybrid System® STANDARD

The double nipple design Hybrid System® enables a defined discharge of media through the additional external thread. The design of the screw corresponds to that of the Hybrid Assembly®.

Bursting pressure range:   3 - 1000 bar (45 - 14500 psi)

DN:   2,0 - 12,7 mm

Thread size:   G 1/8", G 1/4", G 3/8", G 1/2", G 3/4", G 1"


Hybrid System(R) without thread change

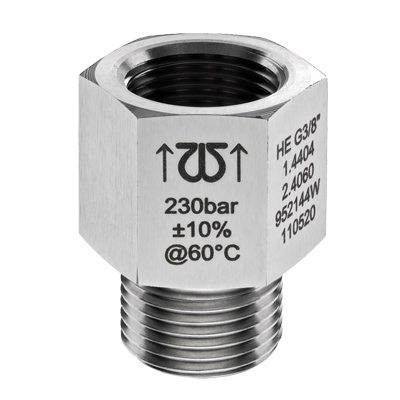

Hybrid System® CONNECT

The tap extension design of the Hybrid System® enables a defined discharge of media due to the additional internal thread. The screw-in design corresponds to that of the standard Hybrid Assembly®.

Bursting pressure range:   3 - 1000 bar (45 - 14500 psi)

DN:   2 - 12,7 mm

Thread size:   G 1/8", G 1/4", G 3/8", G 1/2", G 3/4", G 1"


Hybrid System(R) HIGH PRESSURE

Hybrid System® HIGH PRESSURE

The Hybrid System® HS hp M16 x 1.5 is used in the proven, widely used high-pressure fittings and valves with sealing lens. The lower overall height is an advantage of these assemblies compared to common high-pressure holders.

Bursting pressure range:   10 - 1000 bar (145 - 14500 psi)

DN:   5,5 mm

Thread size:   M16 x 1,5



*) Inconel is a registered trade name







Back to the product overview
